BMW R1200RT (2005-2013)
R850R - R1100R - R1100RS -
R1100RT - R1150RT
Foot peg lowering
kit (driver only)
DL3N fits all RT
models 1996 to 2013.
DL3N Kit fits
R1100RT, R1150RT, R1200RT, R850R, R1100R, R1100RS
If you currently
own a DL3 kit and are moving up to a 2014 or newer RT, your
current kit WILL fit the newer bikes.
The DL3N right side adapter has additional spring coil
clearance to ease installation of the stronger springs used
on the newer RT. Installing the old kit on a new bike may
require a second set of hands to help.
Shopping
cart
at bottom of page.
Home
page BMW parts page
|
|
|
|
|
|
|
|
|

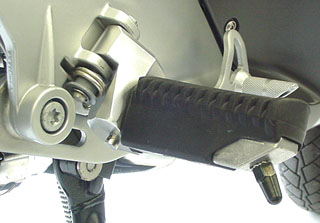

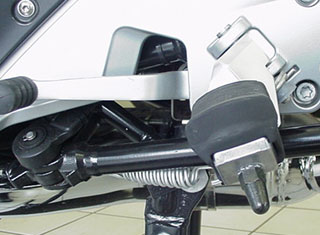

Left Side
The shifter on this
RT is attached to a spline shaft which is hiding
behind the side panel. The shifter can be rotated
counter clockwise one notch for a better position.
|
Net change is
1.45" down,
0.38" forward, total move 1.5"
|
|

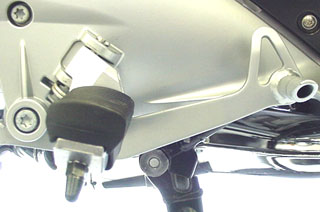

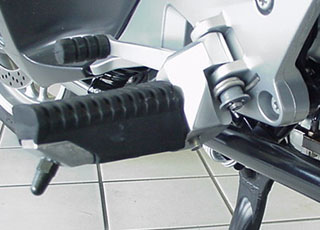

Right
side view
|
|
| |
|
|
|
|
|
Right
Side
Note:
The 2014 &
newer R1200RT does not have an
adjustable stop on the brake pedal.
On previous models the brake pedal could
be adjusted to a lower position to allow
easier access when using the DL3N kit. This feature
has been eliminated by the factory.
|

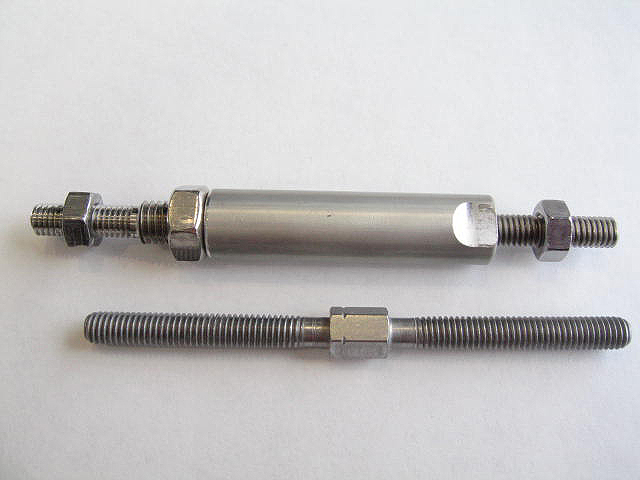

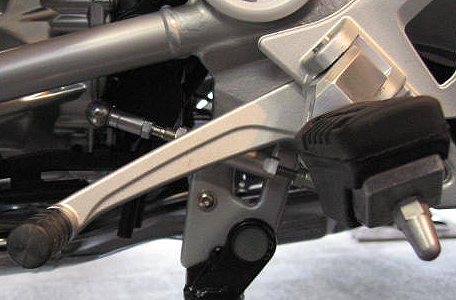

The brake pedal on 1996 thru 2013 models have a stop
bolt which can be backed out to lower the pedal. The
linkage to the master cylinder must be shortened to
maintain proper free play so that the rear brake will
not drag. Your BMW dealer can make these adjustments for
you. |
|
|
|
|
DL3N Kit fits
R1200RT up to 2013, R1150RT, R1100RT, R850R, R1100R,
R1100RS
| DL3N
(Driver) Foot peg
Lowering Kit 1996 -2013 $279.95 |
 |
|
