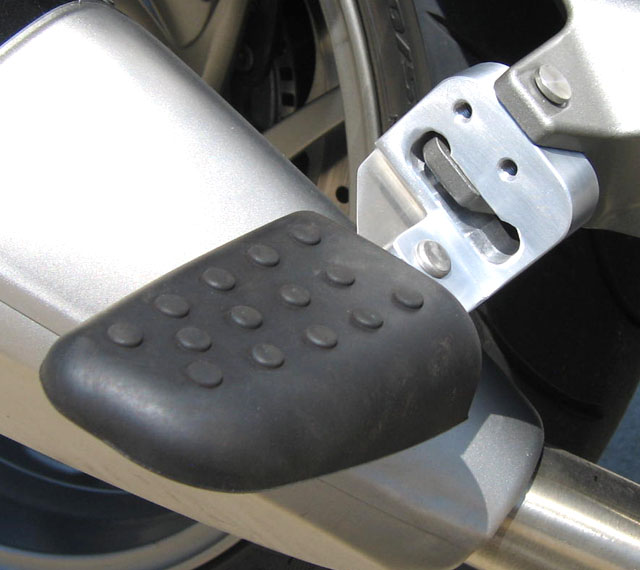

Left side

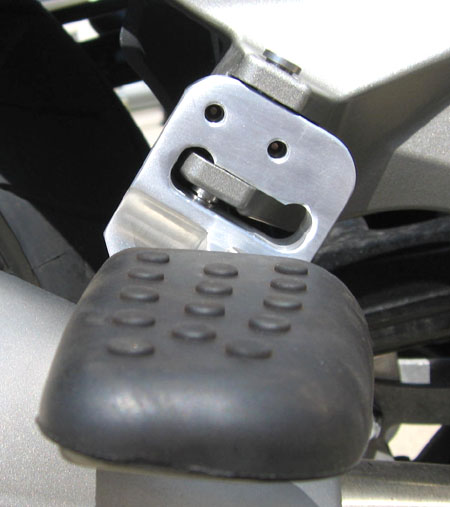

Right side

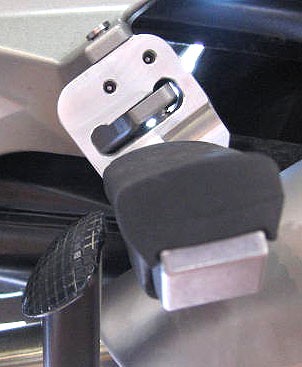

Left side


Right side

On the GTL, the left side requires the use of a passenger peg from an RT or GS.
The GTL passenger peg does not clear the centerstand actuating arm when the kit is installed.

On the right side, the factory GTL peg fits well.

Footpeg moves 2.0" diagonally down and forward.

K1600GTL up to 2017.
K1600GT all years.
 P17- passenger footpeg raising kit

Prototypes pictured here.

P17 kit raises passenger footpeg 1.8"


2017 production samples

In this picture the kit is installed on an R1100RT side panel using an RT footpeg.

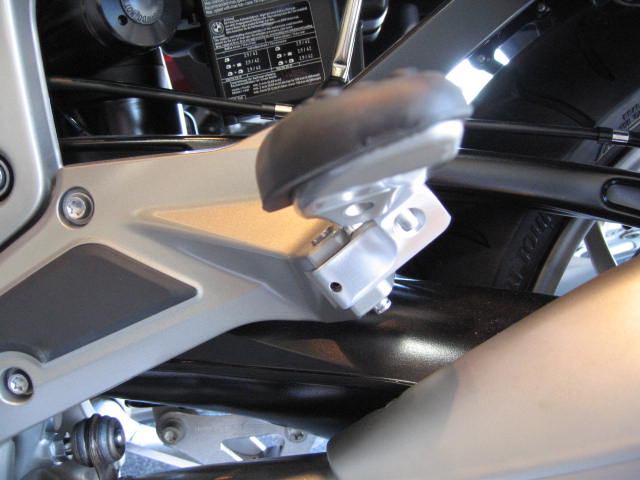

Peg is retracted.

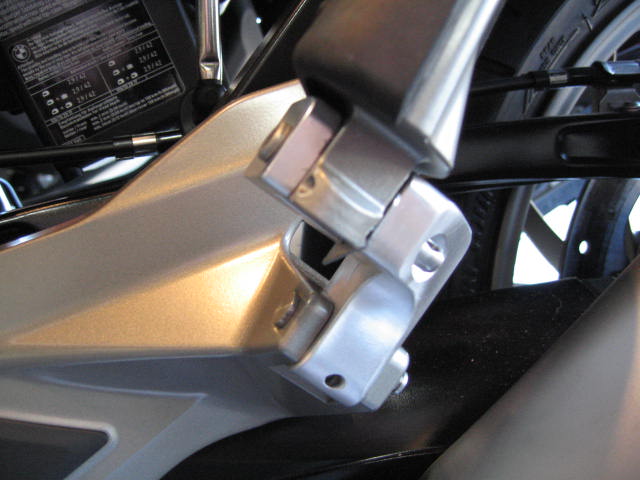

In this photo the peg is down in the working position.

Viewed from above, when using the GTL passenger footpeg.

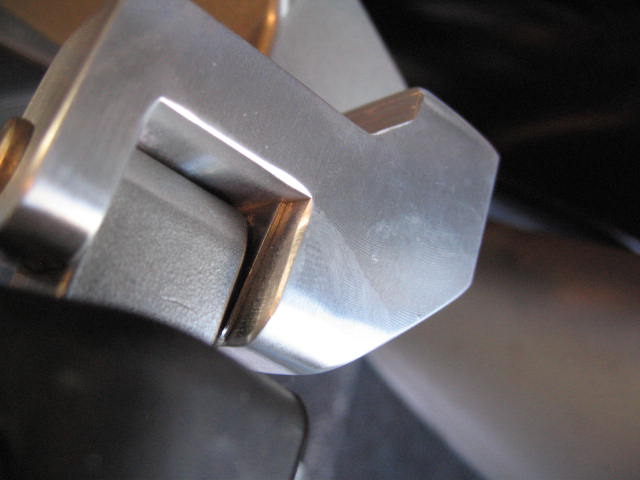

Look closely and you can see the factory detent plate that holds the footpeg in the retracted position.

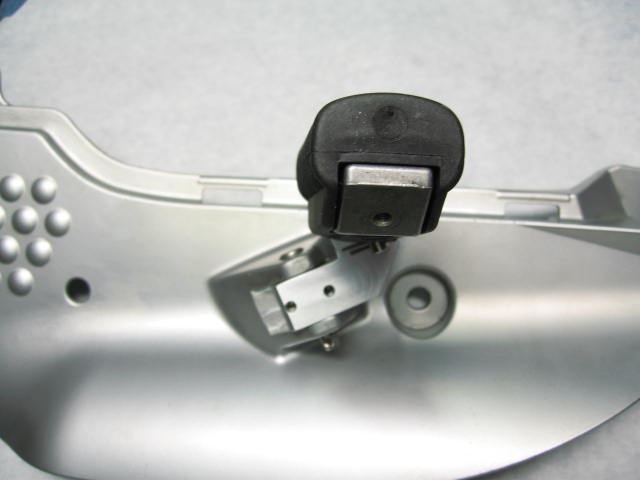

Production parts pictured above.

P19 passenger up kit for 2018 K1600 GTL / Bagger, raises factory peg 1.8" higher
and 0.8" forward.
