BMW K1200S

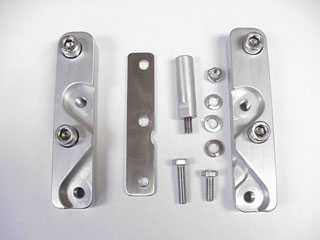

detailed pictures of footpeg kit installed
Return to K1200S Page

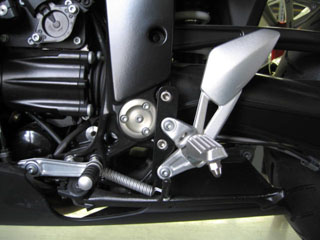

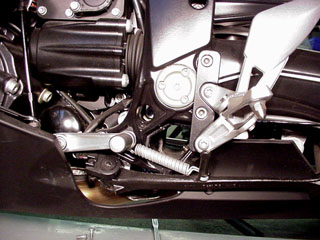

Left Side

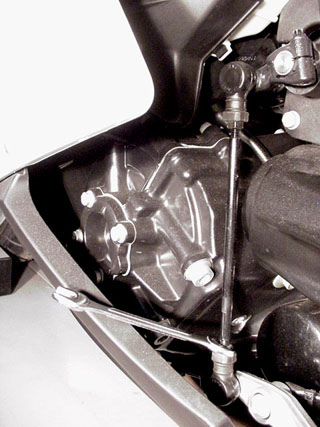

The turnbuckle rod from the shifter to the transmission
is shortened to lower the working end of the shifter.

Right Side

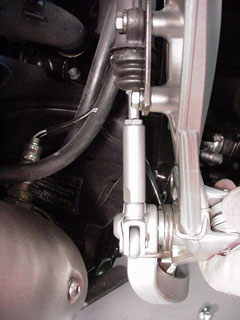

Here the linkage extender is installed between the lower
clevis and the actuating rod leading into the master cylinder.

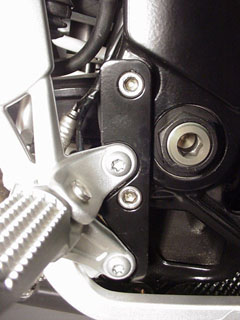

Use the new bolts to attach the adapter to the frame.
Use the factory bolts to attach the peg carrier casting
to the adapter.

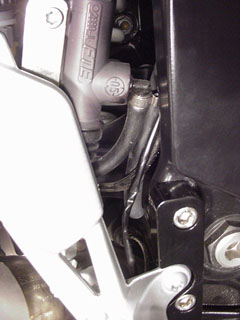

In this picture the master cylinder is tied into the sub-casting
with two hex head bolts and one factory socket head bolt
with lock washer and nut.

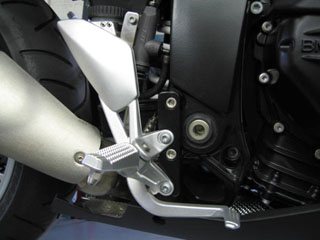

Kit is no longer available in black

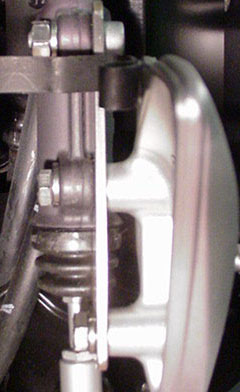

In this picture the notch in the stainless plate fits around
the flange at the bottom of the master cylinder,
upper left in picture.
