R1200R / R1200ST / Driver foot peg lowering kit (DL7)

Go to Home Page            Go To BMW Parts Page

New kit for 2015 & newer R1200R and R1200RS (DL7N)
Pictures below, shopping cart at bottom of page


(DL7)
Footpeg kit for R1200R / R1200ST up to 2014

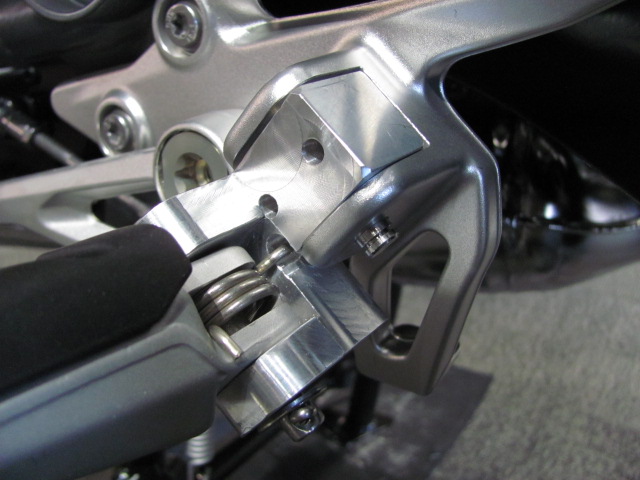

On the left side, a replacement foot peg
is 1.3" lower and clears the side stand.

The right side is lowered 1.5" with an adapter
plate that moves the foot peg and brake pedal
together. The master cylinder stays in place.

Because of the placement of the side stand,
the foot position of the new peg is set out
to the side approximately one inch.

Advisory for 2010 - 2011 R1200R owners
For 2010 BMW has added a side stand
actuating arm (pictured above) to make
lowering the stand easier. This arm makes
shifting difficult when our kit is installed. So
far, the only solution is to cut off the arm,
or live with the pegs high.

R1200R 2012 - 2014 first generation
Advisory:

  2012-2014 production bikes have the footpeg rubber inserts installed using pop-rivets instead of bolts. To move the rubber to the new footpeg the rivets must be drilled out and new rivets installed. Does not apply to 2015 & newer.




(DL7N)
2015 & Newer  R1200R & R1200RS

R1200R Left side
-Left Side-
Footpeg moves 1.5" down, 0.4" forward.
Included linkage extender lowers shifter
as far as the side stand will allow.
Kit includes both sides.
R1200R right side
-Right Side-
Brake pedal, footpeg and master cylinder
all move 1.4" diagonally down and forward
This is the max the brake hoses will allow.

Order on-line or call 1-440-951-6555.


DL7 - R1200R / ST / R9T Driver Foot peg Lowering Kit - $219.95
Add to Cart

DL7N - R1200R / RS 2015 & newer
Driver Foot peg Lowering Kit - $219.95
Add to Cart
