Bulldog
Carbon fiber bicycle frameset.
This is frame number one, built using a tube & lug set from Italy.
See pricing info below.

For contact info-> Return to home page


Frame #1

Dimensions:
  55cm seat tube, 56cm top tube, 73D seat tube, 74D head tube, 10cm stem.
Frame equipped with Dedacciai Blackstick II fork and seatpost.
 Shimano Ultegra group with Dura-Ace STI levers and Cane Creek IS6 headset.
Seatpost diameter is 32.4mm.


Frame #3    One piece main triangle, compact geometry

Dimensions:
  50cm seat tube (center to top), 54cm top tube,10cm stem, 1-1/8" integrated headset.
Effective top tube length 56cm.
Frame equipped with Dedacciai Blackdrive fork, Drivetail seatstay and Drivebox chainstay.
 Shimano 105 group and Cane Creek IS8 headset.
Seatpost diameter is 31.6mm.

Frame (bare) $1,690.00
Seatpost 32.4mm carbon $150.00
Seatpost 32.4mm aluminum $50.00
Seatpost 31.6mm carbon $90.00
Fork (carbon, Reynolds or Dedacciai) $295.00
Headset $90.00
Clear coat finish $150.00
 Custom paint available on request, cost will vary.



Close-up of top tube showing clear coat and carbon weave.
The black wire leads to the power-tap rear hub.

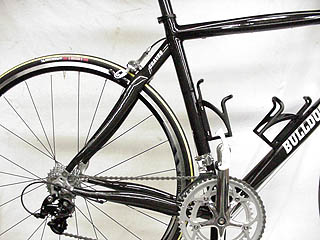

Drivetail and Drivebox stays

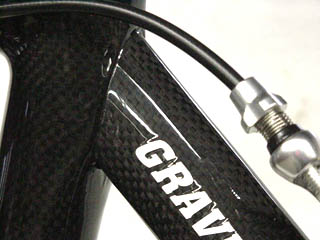

Customer's name on seat stay

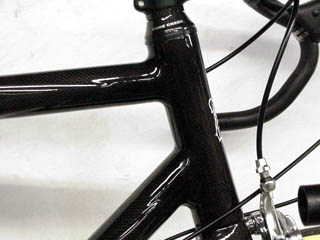

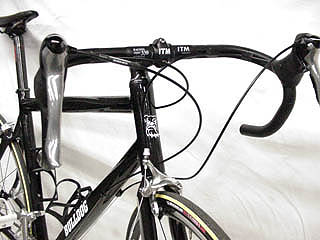

Lugless headtube

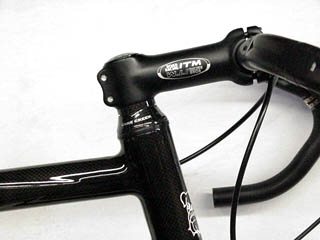

Long headtube = fewer spacers

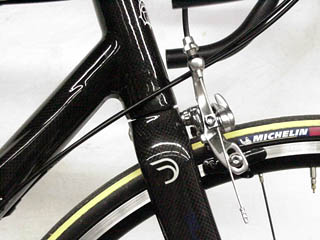

Top of Blackdrive fork

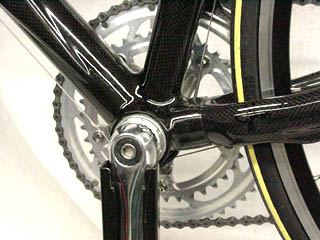

Bottom bracket + chainstay joint



Seatstay to seatube attach point.

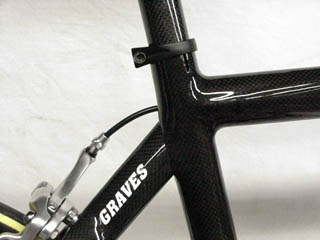

Seat-tube collar and seatpost clamp.

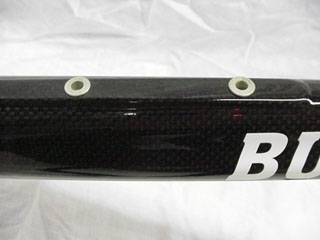

Bottle cage fittings

11-22-05:

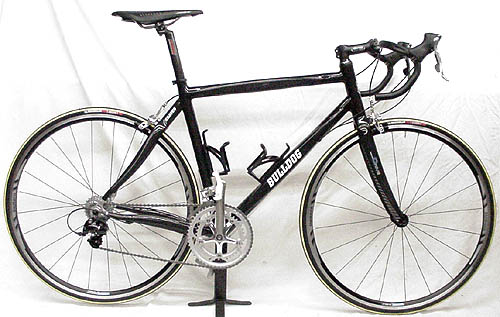

This new frame is a one piece compact geometry design.
More info to follow in a few days.
