Customer's bike is pictured here.
This is a flat bar assembly like the SV650 type two.
Rider's hands are at the height of the handlebar clamps.

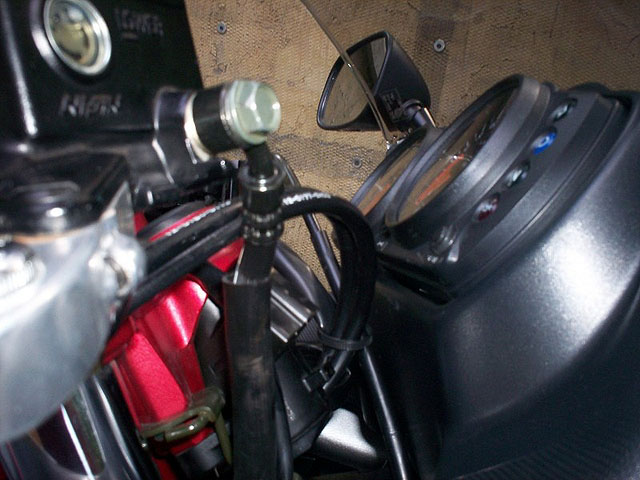

Banjo fitting on brake hose turned around to clear the instruments.

Before

After

Kawasaki Z1000 second generation.
Note the Throttle twist grip is seperate from the electrical switchgear.
This requires a third hole in the bar.
The first generation Z1000 bars has only two holes.

A Z-750 owner has used the Z1000 bar on his bike. The two hole version (HKZ2) should match the 750 switchgear.

This is our threaded bar end plug
for factory bar end weights.
