R1200R / R1200ST /
Driver foot peg lowering kit
To BMW Parts Page
kit for 2015 & newer
R1200R and R1200RS available now.
Pictures below, shopping
bottom of page.

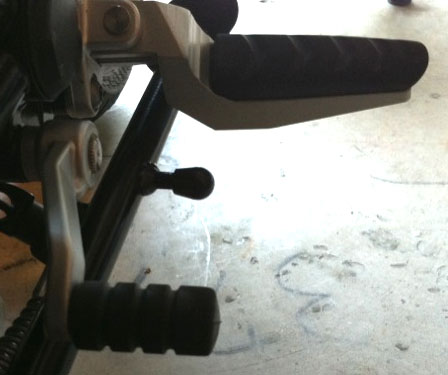

On the left side, a
replacement foot peg is 1.3"
lower and clears the side stand.
The right side is lowered
1.5" with an adapter plate
that moves the foot peg and brake pedal together.
The master cylinder stays in place.
Because of the placement of
the side stand, the foot position of the new peg is set
out to the side
approximately 1 inch.
2010 -2011 R1200R owners

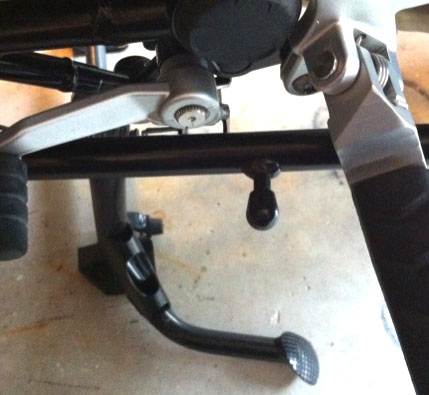

BMW has added a
sidestand actuating arm (pictured above) to
make lowering the stand
arm makes shifting difficult when our kit is
So far, the only solution is to cut the arm
off, or live with the pegs
& 2016 R1200R & R1200RS
Brake pedal, footpeg and master cylinder
all move 1.4" diagonally down
This is the max the brake hoses will allow.
Footpeg moves 1.5" down, 0.4" forward.
linkage extender lowers shifter as far as the side
stand will allow.
Kit includes both sides.
2012 - 2014 Advisory:
production bikes have the footpeg rubber inserts
pop-rivets instead of bolts. To move the rubber to the
new footpeg the
rivets must be drilled out and new rivets installed.
Does not apply to
2015 & newer.
Order online via secure server or
call Suburban at 1-800-297-1341 or fax at 440-951-5174.
Does not fit 2015
& newer R1200R
DL7 - R1200R /
ST / R9T Driver Foot peg Lowering Kit - $209.95
DL7N - R1200R /
Driver Foot peg Lowering Kit - $209.95
