-BMW R1100S comfort kits
Handlebar up kit has been discontinued.
Home Page
R1100S Footpeg
Lower page

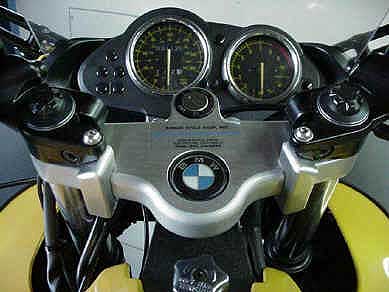

Close up view of the handlebar riser kit.

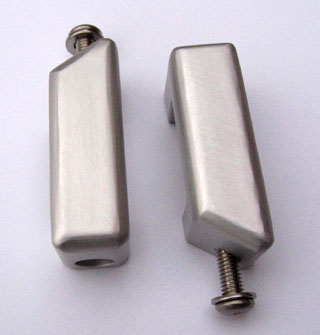

Two aluminum blocks tie the clip-ons above the triple clamp in the
proper rotational position.
New stainless button head cap screws attach the clip-ons to the
adapters.
Telelever front suspension allows the fork sliders to be raised up
through the upper triple clamp without affecting the bike's geometry.
The handgrips move up 2.25" and back 1.0".
None of the original wiring, hoses or cables needs to be changed,
except on non ABS models a longer brake hose is required.
For Brembo calipers (99 thru Jan 2001) use BMW part # 34-32-2-331-915
For BMW EVO calipers (Feb 2001 thru 2005) use BMW part # 34-32-7-651-553
Left hand grip wiring runs outside of the left fork tube.
Wiring tie wraps at the front of the gas tank are cut away to provide
more slack in the wiring harness
Notes:
The handlebar kit only works on bikes that come from the factory
with the clip-on handlebars mounted underneath the triple clamp.
If your R1100S has its bars mounted above the triple clamp, our kit will
not help.
R1-Handle Bar Riser Kit for R1100S - no longer
available. $00.00
DL4-Footpeg lowering kit for R1100S- no longer available $000.00
DL4-Footpeg lowering kit for R1100S- no longer available $000.00
